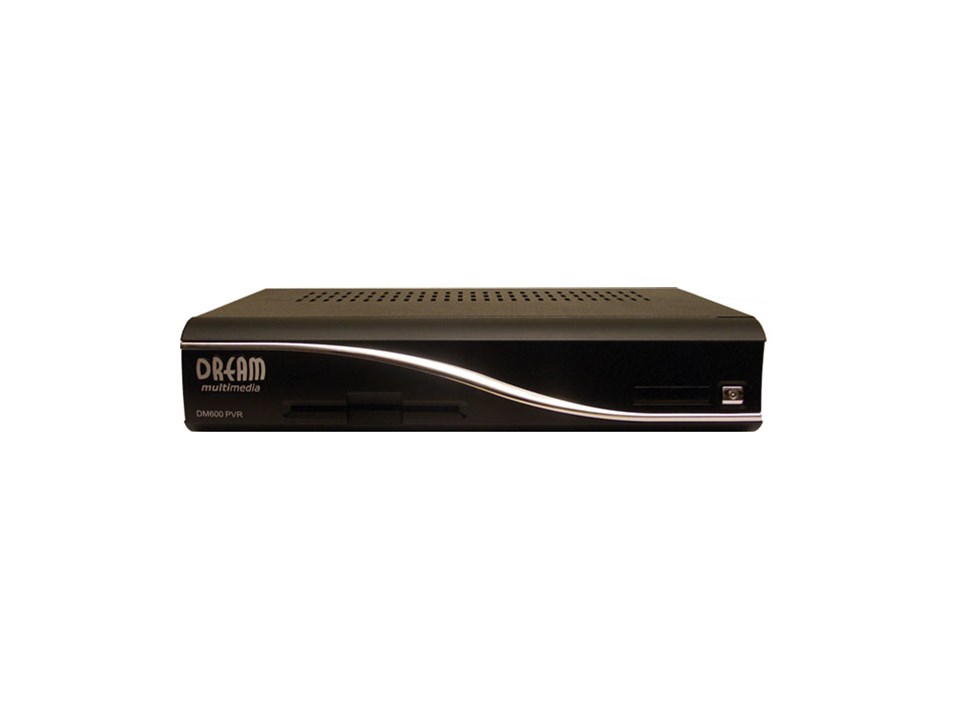

Dream Multimedia Dreambox Dm-600S Pvr(Används som Demo, 3 Månaders garanti)

Produktinformation
VI STÖDJER INTE OLAGLIG NEDLADDNING ELLER ATT MOTTAGAREN ANVÄNDS PÅ ETT OLAGLIGT SÄTT
250 MHz PowerPC Processor (350 Mips)
Linux Operating System
1 x Smartcard-Reader
MPEG2 Hardware decoding
Common available NIMs (DVB-S, DVB-C, DVB-T)
Tuner modules, Plug&Play
V.24/RS232 Interface
10/100Mbit compatible Ethernet Interface
2 LED status
32 MByte Flash, 96 MByte Ram total
integrated IDE UDMA66 Interface
Support for internal HDD 2,5\ in any capacity
unlimited channel lists for TV/Radio
channel-change time < 1 second
full automatic service scan
supports directly bouquet-lists
supports EPG (electronic program guide)
supports own videotext
supports multiple LNB-Switching control (DiSEqC)
fully adaptable OSD in many languages and skin-support
S/PDIF Interface for digital bit stream out (AC-3)
1 x Scart-interfaces
S-Video connector
analogue modem

DreamBox DM600 technical data

DBS-Tuner
Frequency Range 950 ?. 2150 MHz
Signal Level - 65 dBm ?. - 25 dBm
Signal-to-Noise Level 12 dB max.
DBS-Tuner Input Connector F-Type female
Input Impedance 75 Ohm
AFC +/- 3 MHz
Demodulation Shaped QPSK
FEC Viterbi and Reed-Solomon
Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8, automatic assimilation
Roll-off Factor 35 %
Demultiplexing according ISO 13818-1

Video decoder
Video Compression MPEG-2 and MPEG-1 compatible
Video Standard PAL G/ 25 Hz
Video Formats 4:3 / 16:9
Footage 16:9, automatic assimilation for 16:9 TV-Device (over Scart)
Letterbox precolating for 4:3 TV-Device

Audio decoder
Audiokompression MPEG-1 & MPEG-2 Layer I and II
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analogue:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB

Output digital
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical (AC3)

Video parameter
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard

TV-Scart
Output: FBAS,RGB,S-Video

Serielle Interface RS 232
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware

Ethernet
10/100 MBit compatible interface
Function: Update of Firmware, Connect to PC

UDMA66 IDE Interface
Intern for connect 2,5\ HDD

LNB Power and polarisation
LNB Current 500mA max. ; short-circuit-proof
LNB Voltage vertical < 14V without load, > 11,5V at 400mA
LNB Voltage horizontal < 20V without load, > 17,3V at 400mA
LNB shut-off at Standby-Mode

Count of active satellite position
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control

Power consumption
< 15W / 12V

Input voltage
DC12V,alternating acurrent +/- 15%

Extern power supply
Input: 110-240V AC / 50-60Hz / 0,6A
Output: 12V = / 2,5A

Physical specification:
Ambient Temperature +15°C...+35°C
Humidity < 80%
Size (W x D x H): 195 mm x 130 mm x 40 mm
Weight: 0,6 kg
